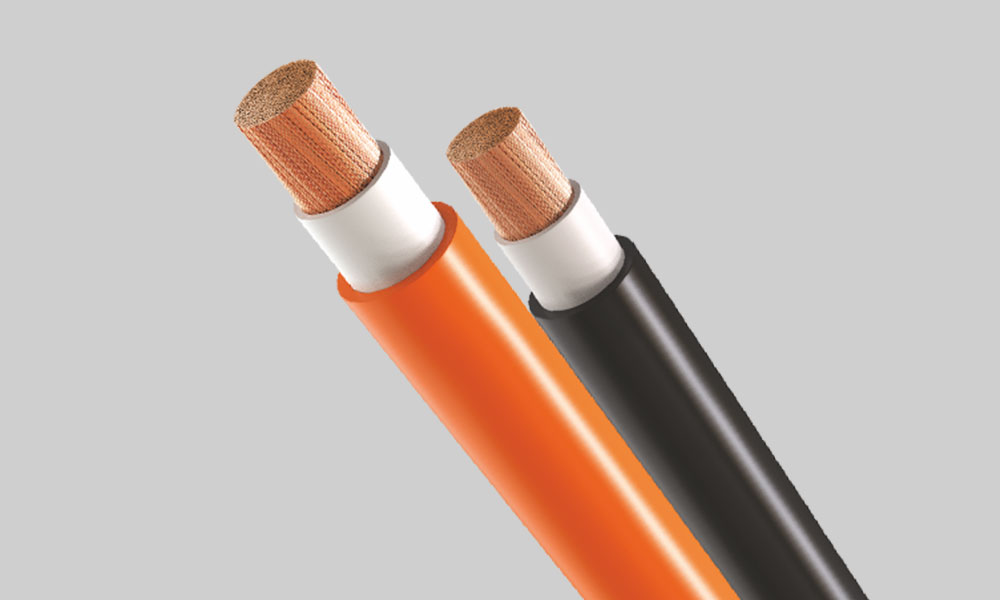

NBR Rubber Double Insulated Extra Flexible Copper Welding Cables

Construction:

Fixed installation :- -30°C to max. +90°C

Nominal voltage :- 600V

Test voltage:- 2500V

Mechnical Properties:- Tensile strength = 10 N/mm² Min.Elongation = 300 Min.

Min. bending radius:- 6 × cable diameter

Flame propagation:- Flame retardant test as per IEC 60332-1

NBR:-

- Designed for the secondary (high current) connection to automatic or hand – held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated line and spot welding machines.

Standard length cable packing:-

- Coils 100, 200, 300 and 500 m. in wooden reels

Features:

  • Ultra high performance flexible welding lead, double insulated
  • Better flame retardant properties
  • Excellent flexibility to last longer in flex applications. Based on CENELEC HD 22-6 31, VDE 0282, IEC 245-6, IS 473, BS 638-4
  • Outstanding toughness & durability
  • High resistance to cuts, tears & abrasion
  • Resistance to oil, solvents and chemicals
  • Excellent ozone and weather resistant

Current Rating:-

- The maximum current ratings of flexible welding cables for different duty cycles are based on an ambient air temperature of 25ºc and a maximum conductor temperature of 90ºc. The percentage duty cycles for various processes and applications are as follows:

  • Automobile Welding: up to 100%
  • Semi-automatic Welding: 30% to 85%
  • Manual Welding: 0% to 60%
  • Very intermittent or Occasional Welding: up to 20%

Voltage Drop:-

- When total cable lengths in excess of 15 mtrs., are involved, it may be necessary to use cables of larger cross section to ensure that the voltage drop is not excessive and welding currents are maintained at adequate levels.

Cross Sectional Area
(Sq. mm.)
Copper Construction
(Nos. / Dia. mm)
Inner Dia
(mm)
Outer Dia Appx.
(mm)
Max. Conductor Resistance
at 20°C (Ω/km)
Current Rating - Welding Application (Duty Cycle) Non Welding
Application (amp)
100% 85% 60% 30% 20%
10 322 / 0.20 6.30 9.90 1.910 105 115 135 190 235 110
16 511 / 0.20 8.00 10.70 1.210 135 145 175 245 302 138
25 798 / 0.20 9.50 12.10 0.780 180 195 230 330 402 187
35 1121 / 0.20 11.00 14.20 0.554 225 245 290 410 503 233
50 1596 / 0.20 12.30 16.30 0.386 285 310 370 520 637 295
70 2220 / 0.20 14.40 18.70 0.272 355 385 460 650 794 372
95 1349 / 0.30 16.60 20.80 0.206 430 475 560 790 961 449
120 608 / 0.50 18.20 23.00 0.161 500 540 650 910 1118 523
150 760 / 0.50 21.10 27.60 0.129 580 620 740 1040 1297 608
185 943 / 0.50 23.80 30.80 0.106 660 715 850 1200 1476 690
240 1225 / 0.50 26.80 34.40 0.0801 770 830 990 1350 1587 744
300 1498 / 0.50 30.30 37.50 0.0641 880 950 1135 1530 1790 840
400 2035 / 0.50 36.30 41.30 0.0486 925 1000 1195 1690 2070 970
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360.

    In view of continuous improvements in our design and process, specifications given here in are subject to change without notice.

    • > All are flexible conductor
    • > Insulation material is NBR
    • > Sheath material is NBR
Ambient temperature °C 20° 25° 30° 35° 40° 45° 50° 55° 60° 65°
Rating Factor 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.69 0.64 0.57
