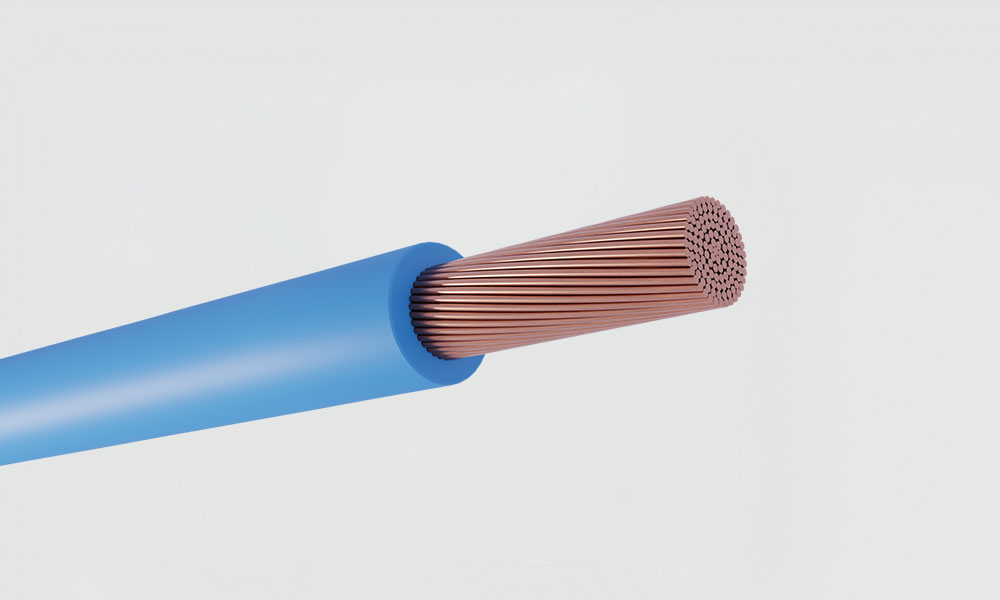

HO5Z-K / HO7Z-K

HO5Z-K 300/500 V HO7Z-K 450/750 V

Construction:

Conductor :- Fine Stranded Copper (Class 5 - Flexible Plain Copper) to VDE 0295 IEC 60228

Color :- Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation :- Zero halogen IEC 60754-2, Flame retardant test as per IEC 60332-1

Operating Temp :- -30°C to +90°C

Nominal Voltage :- HO5Z-K : 300/500 V
HO7Z-K : 450/750 V

Test Voltage :- HO5Z-K : 2500 V
HO7Z-K : 2500 V

Insulation resistance :- Min. 10 MΩ x km

Min. bending radius :- 4 x cable diameter

✔ HO5Z-K, H07Z-K

- Fixed installation in conduits and under plaster, for appliance wiring and distribution stations For wiring of lamps, devices, switchgear cabinets and distribution boxes

✔ Standard length cable packing

- Coils 100 and 200 m in carton boxes, reels

  • Special heat resistant thermosetting insulation.
  • High Current Carrying Capacitys.
  • Less heat energy radiation.
  • High Flexibility.
  • Excellent resistant to moisture, abrasion, grace, oil.
  • Excellent mechanical & electrical properties.
  • Harmonized acc. to European standards.
  • Insulation is highly thermal stable.
  • Tested by SGS, EIL, RITES, NPC, INTERTEK.
Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
0.5 16/0.200 0.60 2.10 39.00
0.75 24/0.200 0.60 2.20 26.00
1 32/0.200 0.60 2.70 19.50
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83

Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
1.5 30/0.250 0.70 3.25 13.3
2.5 50/0.250 0.80 3.80 7.98
4 56/0.300 0.80 4.50 4.95
6 84/0.300 0.80 5.25 3.30
10 140/0.300 1.00 6.50 1.91
16 224/0.300 1.00 8.00 1.21
25 350/0.300 1.20 10.10 0.780
35 490/0.300 1.20 11.30 0.554
50 703/0.300 1.40 13.50 0.386
70 988/0.300 1.40 15.30 0.272
95 1349/0.300 1.60 18.00 0.206
120 608/0.500 1.60 19.80 0.161
150 760/0.500 1.80 22.30 0.129
185 943/0.500 2.00 23.90 0.106
240 1225/0.500 2.20 26.80 0.0801
