Power Cords

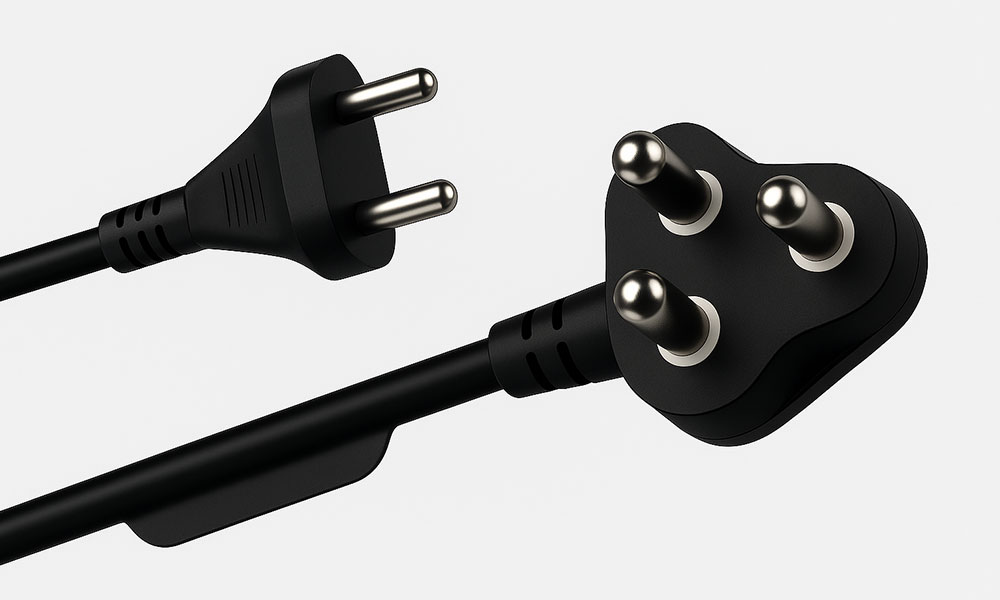

2 Pin & 3 Pin Moulded Power Cords

Construction:

Conductor :- High conducitivity, bare annnealed copper flexible conductor, EC copper class 5 and class 6 generally confirms to IEC 60225, DIN VDE 0281.

Insulation :- PVC insulated and PVC Sheathed.

Color Code :- 2 Pin : Red & Black,
3 Pin : Red, Black, Yellow/Green,
*Any other Color on specific request can also be supplied.

Application:

The moulded cords manufactured are used in various applications such as Flexi-cords, Extension cords, Spike guards, Hand blenders, Mixers, Home appliances, Refrigerators, Vacuum Cleaners, Air conditioners, Juice Mixers, Refrigerators, Testing Equipment's, Washing Machines, TVs, Audio Video Systems, Computer Peripherals, Weighing Scales, etc.

Power Cord Features:

  • Ultra high performance flexible cords.
  • Better flame retardant & shock properties.
  • High resistance to cuts, tears & abrasion.
  • Excellent ozone and weather resistant.
  • Longer Flex life.
  • Excellent mechanical & electrical properties.

2 Pin Moulded Cords

Sr. No. of Strands / Strand Dia. Sq. mm Insulation Thickness (Nom) Sheath Thickness (Nom) No. of Core Shape O.D. (mm) (Approx.) Amperes Standard
1 16/0.200 0.50 0.6 0.9 2 Flat 6.10 x 3.95 6.00 IS 1293
2 16/0.200 0.50 0.6 0.9 2 Round 6.10 6.00 IS 1293
3 24/0.200 0.75 0.6 0.9 2 Flat 6.50 x 4.15 6.00 IS 1293
4 24/0.200 0.75 0.6 0.9 2 Round 6.50 6.00 IS 1293
5 32/0.200 1.00 0.6 0.9 2 Flat 6.85 x 4.35 6.00 IS 1293
6 30/0.250 1.50 0.6 0.9 2 Round 7.45 6.00 IS 1293

3 Pin Moulded Cords

Sr. No. of Strands / Strand Dia. Sq. mm Insulation Thickness (Nom) Sheath Thickness (Nom) No. of Core Shape O.D. (mm) (Approx.) Amperes Standard
1 16/0.200 0.50 0.6 0.9 3 Round 6.50 6 IS 1293
2 24/0.200 0.75 0.6 0.9 3 Round 6.85 6 IS 1293
3 32/0.200 1.00 0.6 0.9 3 Round 7.25 6 IS 1293
4 30/0.250 1.50 0.6 0.9 3 Round 7.90 16 IS 1293
5 50/0.250 2.50 0.7 1.0 3 Round 8.60 16 IS 1293
  1. Note says:

    The number of wires and diameter mentioned in the table are approximate and nominal. However, they shall meet the requirement of conductor resistance as per standards.

    We cater customized cords in accordance with Indian and International Standards.

    In view of continuous improvement in our design and process, the information, dimensions, and specification given here in are subject to change without notice.
