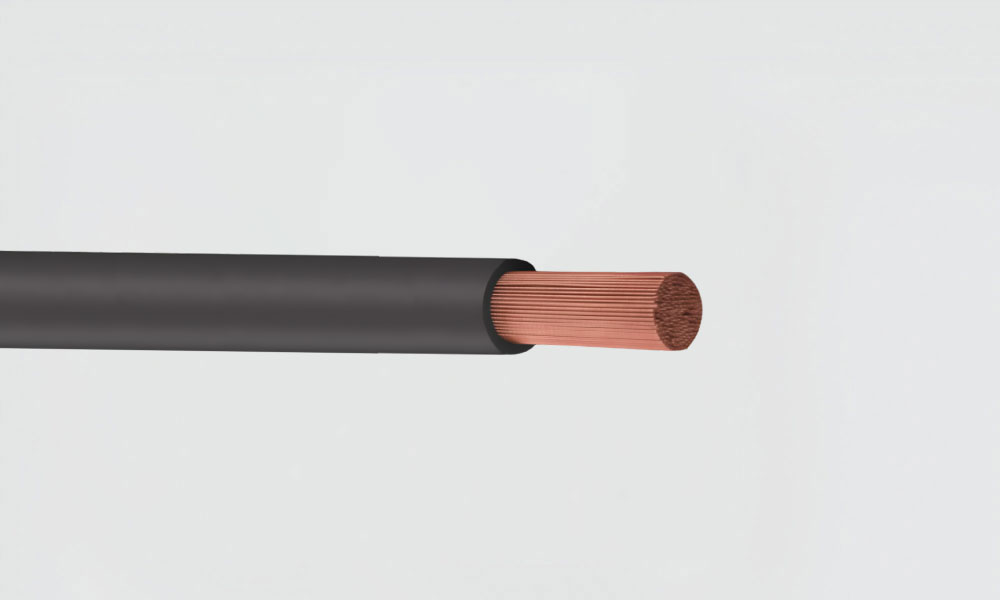

PVC Single Core Auto Cable BS 6862

PVC Single Core Auto Cable BS 6862

Construction :

Stranded

Bare Copper

PVC Insulation

0.023 Nominal Insulation Thickness

Application:

Auto Cables may be used in general purpose low voltage wiring cables suitable for use in the automotive, marine and allied industries.

Characteristics :

  • Temperature Range : Up to +70°C.
  • Resistant to Petrol, diesel, lubricating oils and diluted acids.

Specifications of PVC Single Core Auto Cable BS 6862 (Single Core)

Conductor Specification
(mm)		 Conductor Cross Section
mm² (AWG) 		Current Rating
(Amps)		 Maximum Diameter
of Cable (mm) 		Maximum Loading (Watts) Resistance Per Metre
at 20°C (Ohms)
12 Volts 24 Volts
9/0.30 0.61 (19) 5.75 2.5 69 138 0.0294
14/0.30 1.0 (17) 8.75 2.7 105 210 0.0189
21/0.30 1.5 (16) 12.75 3.0 153 306 0.0125
28/0.30 2.0 (14) 17.5 3.4 210 420 0.0094
35/0.30 2.5 (13) 21.75 3.8 265 522 0.0075
49/0.30 3.5 (12) 27.5 4.2 330 660 0.0050
65/0.30 4.5 (11) 35.0 5.1 420 840 0.0040
84/0.30 6.0 (10) 42.0 5.9 504 1008 0.0031
97/0.30 7.0 (9) 50.0 6.2 600 1200 0.0027
120/0.30 8.5 (8) 60.0 7.0 720 1440 0.0022
80/0.40 10.0 (7) 70.0 7.5 840 1680 0.0018

*Available in different colors, lengths, wounds on card board, Plastic (Shatter Proof Material) or Wooden Reels.

PVC 4 Core Flat Cable For Submersible Pumps (1100 VOLTS)

Conductor PVC Insulation PVC Sheath Conductor
Resistance
at 20°C (Max)
Ω/km		 Current
Rating at
40°C Amps.
Nominal
Size in		 Nos. &
Dia of Wire		 Nominal
Thickness		 Nominal
Core Dia 		Nominal
Thickness		 Approx. Overall
Dimensions
Sq. mm. Nos./mm mm mm mm Height
mm		 Width
mm
1.50 22/0.30 0.80 3.25 1.30 6.20 15.80 12.10 14
2.50 36/0.30 0.90 3.80 1.30 6.40 18.00 7.41 18
4.00 56/0.30 1.00 4.50 1.45 7.40 21.00 4.95 26
6.00 84/0.30 1.00 5.25 1.50 7.90 24.50 3.30 31
10.00 140/0.30 1.00 6.50 1.80 9.90 29.70 1.91 42
16.00 224/0.30 1.00 8.00 1.95 11.80 36.00 1.21 57
25.00 350/0.30 1.20 10.10 2.00 14.70 45.10 0.780 72
35.00 490/0.30 1.20 11.30 2.00 16.80 50.10 0.554 90
50.00 703/0.30 1.40 13.50 2.20 18.20 58.20 0.386 115
70.00 988/0.30 1.40 15.30 2.20 20.00 66.50 0.272 143
95.00 1349/0.30 1.60 18.00 2.40 23.50 77.30 0.206 165
120.00 608/0.50 1.80 19.80 3.50 27.80 87.00 0.161 188
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

    In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
