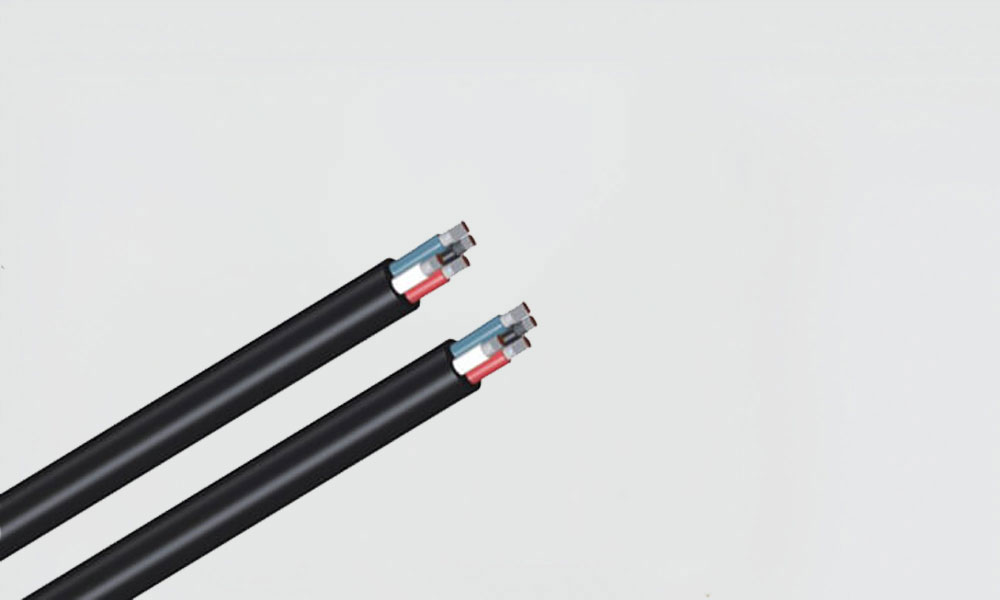

Thin Wall 5 & 7 Core Auto Cable

Thin Wall 5 & 7 Core Auto Cable

Thin Wall 5 Core Auto Cables

Cores manufactured to ISO 6722 : 2006 (Class B) 105°C.

Plain copper conductors PVC sheathed 70°C.

Construction :

Cores manufactured to ISO 6722 : 2006 (Class B) 105°C.

Plain copper conductors PVC sheathed 70°C

Specifications Of Thin Wall Auto Cable (5 Core)

Conductor Specification
(mm)		 Conductor Cross Section
mm²		 Nominal Current Rating
(Amps)		 Maximum Overall Diameter of Cables
(mm)		 Sheath Colours Core Colours
5 x 24/0.20 5 x 0.75 14.0 6.3 Black Brown
5 x 32/0.20 5 x 1.0 16.5 6.3 Black Red, Green
4 x 32/0.20 4 x 1.0 16.5 7.6 Black White
1 x 28/0.30 1 x 2.0 25.0 7.6 Black Yellow

Specifications Of Thin Wall Auto Cable (7 Core)

Conductor Specification
(mm)		 Conductor Cross Section
mm²		 Nominal Current Rating
(Amps)		 Maximum Overall Diameter of Cables
(mm)		 Sheath Colours Core Colours
7 x 16/0.20 7 x 0.5 11.0 7.0 Black Black
7 x 24/0.20 7 x 0.75 14.0 6.8 Black Red
7 x 32/0.20 7 x 1.0 16.5 7.4 Black Green
6 x 32/0.20 6 x 1.0 16.5 7.8 Black Brown, Yellow
1 x 28/0.30 1 x 2.0 25.0 7.8 Black Yellow, Brown
6 x 21/0.30 6 x 1.5 21.0 10.1 Grey White, blue
1 x 35/0.30 1 x 2.5 29.0 10.1 Grey White, Blue
