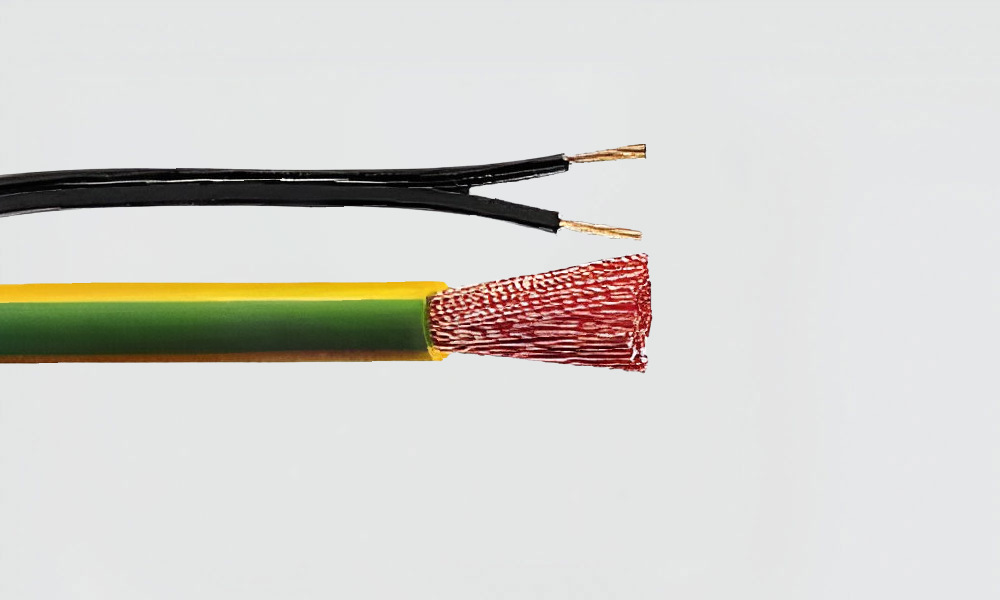

Starter / Battery Cables & Speaker Wire

Stranded
Bare Copper
PVC Insulation

Temperature Range : -15°C to +70°C
Resistant to petrol, lubricating oils and diluted acids.

Starter/Battery Cables may be used for engine and battery connectors in commercial vehicles.

Stranded
Bare Copper
PVC Insulation

Temperature Range : -15°C to +70°C

Twin Flat figure of 8 Cables suitable for wiring speaker systems in vehicles and the home.

Specifications of Starter / Battery Cable

Conductor Specification (mm)	Conductor Cross Section mm² (AWG)	Current Rating (Amps)	Maximum Overall Diameter of Cable (mm)	Resistance per Metre at 20°C (Ohms)	Sheath Colours
266/0.30	20 (4)	135	9.5	0.0010	Black, Red
196/0.40	25 (3)	170	9.8	0.0008	Black, Red
315/0.40	40 (1)	300	12.2	0.0005	Black, Red
396/0.40	50 (1/0)	345	13.3	0.0004	Black, Red
475/0.40	60 (2/0)	415	14.6	0.0003	Black, Red

AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec	Ford Spec
20	7/28	0.029	0.096	7.0	SAE J-1128	M1L-85A
18	16/30	0.030	0.107	9.5	SAE J-1128	M1L-85A
16	19/29	0.030	0.118	12.7	SAE J-1128	M1L-85A
14	19/27	0.035	0.141	19.0	SAE J-1128	M1L-85A
12	19/25	0.037	0.163	27.6	SAE J-1128	M1L-85A
10	19/23	0.043	0.192	40.6	SAE J-1128	M1L-85A
8	19/21	0.043	0.227	92.0	SAE J-1128	M1L-85A
