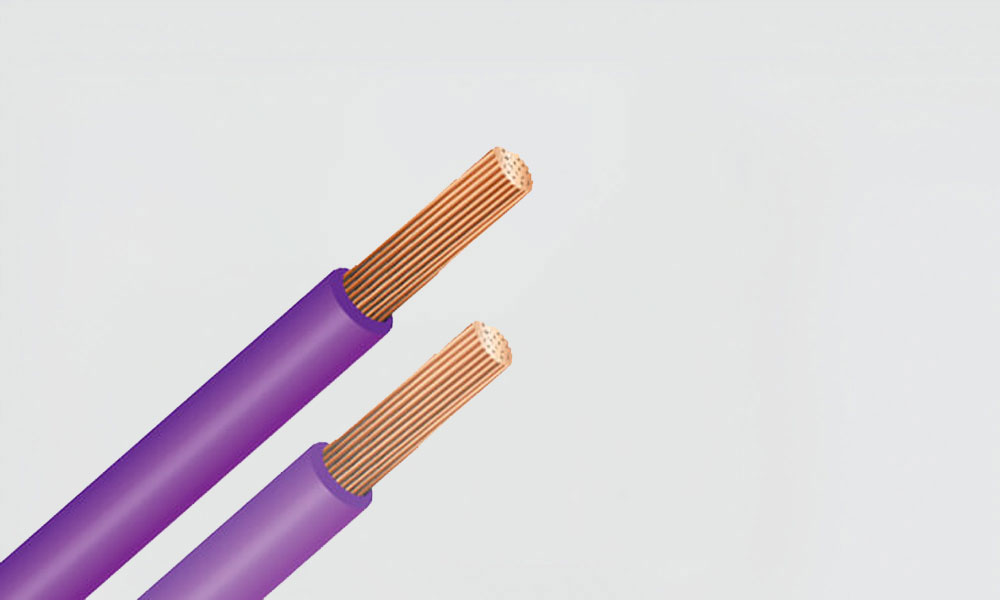

Thin Wall Single Core Auto Cables

Thin Wall Single Core Auto Cables

Thin Wall Single Core Auto Cables

High temperature thin wall low voltage wiring cables suitable for use in the automotive, marine and allied industries. These cables are specified as standard by manufacturers throughout Europe, due to their high performance characteristics.

Construction

Manufactured in accordance with ISO6722 : 2006 (Class B)

Suitable for 12v and 24v systems (Maximum voltage 60v) - excluding High Tension Circuits

Plain Copper Conductors - PVC Insulated

Suitable for use at temperatures from from -40°C to +105°C with excursions up to +120°C

Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses

Good resistance to petrol, diesel, lubricating oils and diluted acids

Good resistance to moisture

Hard grade PVC insulation offers good resistance to abrasion and cut through

Specifications of Thin Wall Single Core Auto Cables

Conductor Specification (mm) Conductor Cross Section (mm) Nominal Current Rating (Amps) Maximum Overall Diameter of Cable (mm) Maximum Loading (Watts) 12 Volts Maximum Loading (Watts) 24 Volts Resistance Per Metre at 20°C (Ohms)
12/0.20 0.35 7.0 1.4 84 168 0.0544
16/0.20 0.5 11.0 1.7 132 264 0.0371
24/0.20 0.75 14.0 1.9 168 336 0.0247
32/0.20 1.0 16.5 2.1 198 396 0.0185
21/0.30 1.5 21.0 2.4 252 504 0.0127
28/0.30 2.0 25.0 2.8 300 600 0.00942
35/0.30 2.5 29.0 3.0 348 696 0.00760
44/0.30 3.0 33.0 3.4 396 792 0.00600
56/0.30 4.0 39.0 3.8 468 936 0.00471
65/0.30 4.5 42.0 4.1 504 1008 0.00406
84/0.30 6.0 50.0 4.3 600 1200 0.00314
97/0.30 7.0 57.0 5.1 684 1368 0.00279
120/0.30 8.5 63.0 5.6 756 1512 0.00220
80/0.40 10.0 70.0 6.0 840 1680 0.00182
126/0.40 16.0 110.0 7.9 1320 2640 0.00160
196/0.40 25.0 170.0 9.4 2040 4080 0.000757
