HO5V-K, HO7V-K

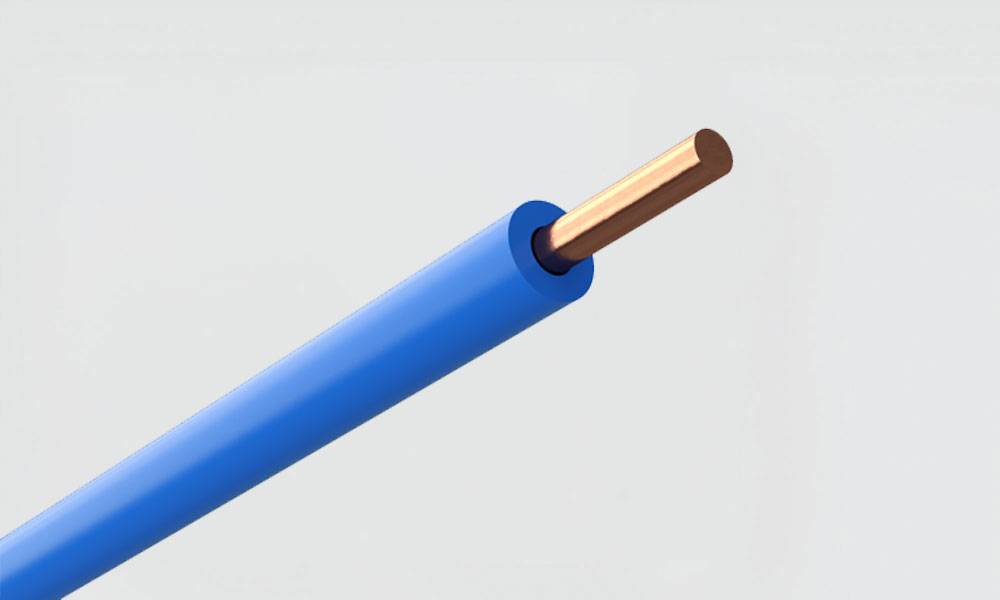

HO5V2-U 300/500 V HO7V2-U 450/750 V

Cable Structure:

Conductor :- Solid copper conductor, class 1 DIN VDE 0281,IEC 60228

Insulation :- Heat - resistant polyvinyl chloride (PVC) insulation

Color :- Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation :- Flame retardant test as Per IEC 60332-1

Operating Temp :- -20°C to max.+80°C

Nominal Voltage :- HO5V2-U : 300/500 V
HO7V2-U : 450/750 V

Test Voltage :- HO5V2-U : 2000 V
HO7V2-U : 2500 V

Insulation resistance :- Min. 10 MΩ x km

Min. bending radius :- 4 x Cable Diameter

✔ HO5V2-U, HO7V2-U

- For internal wiring of appliances as well as installation in an electrical conduit pipe either on or underneath plaster

✔ Standard length cable packing

- Coils 100 and 200 m in carton boxes, reels

  • Special heat resistant insulation.
  • High Current Carrying Capacitys.
  • Less heat energy radiation.
  • Good application of insulation.
  • Excellent resistant to moisture, abrasion, grace, oil.
  • Excellent mechanical & electrical properties.
  • harmonized acc. to European standards.
  • Insulation is highly thermal stable.
  • Tested by SGS, EIL, RITES, NPC, INTERTEK.
Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
0.5 1/0.80 0.60 2.10 36.00
0.75 1/0.97 0.60 2.20 24.50
1 1/1.13 0.60 2.60 18.10
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
1.5 1/1.38 0.70 3.00 12.10
2.5 1/1.78 0.80 3.60 7.41
4 1/2.24 0.80 4.10 4.61
6 1/2.24 0.80 4.70 3.08
10 1/3.57 1.00 5.80 1.83
