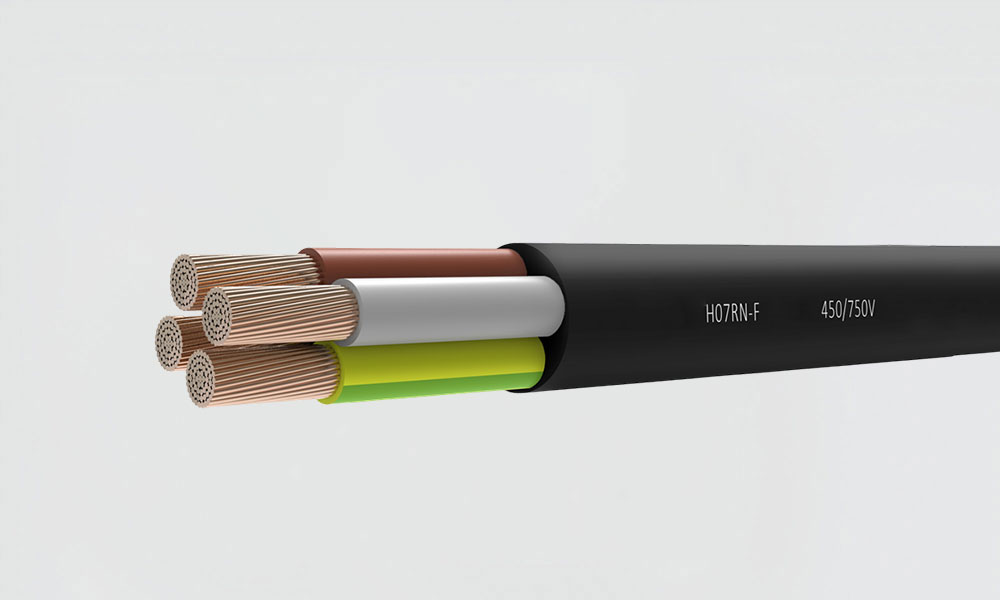

HO7RN-F

HO7RN-F 450/750 V

Information:

Generally Conforms to, DIN VDE 0282 PART 810, IEC 245, BS7655,BS7919/ HD22.1, HD22.4

Conductor :- Flexible Class 5 copper conductor according to DIN VDE 0295,IEC 60228

Insulation :- EPDM-rubber, core identification by colours

Sheathing :- Weather - and oil resistant rubber Black or Blue
*Any other Color on specific request can also be supplied

Operating Temp :- -25°c to max.+90°C

Nominal Voltage :- 450/750 V

Test Voltage :- 2500 V

Min. bending radius :- 8 x cable diameter

Flame propagation :- Flame retardant test as per IEC 60332-1

✔ HO7RN-F

- H07RN-F rubber insulated and sheathed cables are intended for flexible connection to electrical equipment. They are suitable for both indoor and outdoor use in industrial and agricultural plant and on construction sites.

✔ Standard length cable packing

- Coils 100 and 200 m in carton boxes, reels

  • Temperature range -30° to +90°.
  • Designed for heavy duty use.
  • Cur, tear & abrasion resistant.
  • Exceptional long term performance.
  • Excellent resistant to oils, chemicals, ozone & solvents.
  • Excellent Weather Resistant.
  • Performs & Looks like Vulcanize Rubber.
  • Excellent Electrical Properties.
  • Approved by GWSSB, GWRDC, TWAD, PHED, PSTC, ONGC.
  • Tested by INTERTEK,SGS, EIL, RITES, NPC.
Sq. mm Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Core dia. in mm Sheath Thickness in mm (nom.) Cable dia. in mm (Nom.) Max. C.R in ohm/km Copper
1 CX 1.5 22/0.300 0.80 3.25 1.40 6.20 12.10
1 CX 2.5 36/0.300 0.80 3.80 1.40 6.70 7.41
1 CX 4 56/0.300 0.90 4.50 1.50 7.50 4.95
1 CX 6 84/0.300 1.00 5.25 1.60 8.60 3.30
1 CX 10 140/0.300 1.00 7.00 1.80 10.80 1.91
1 CX 16 224/0.300 1.20 8.15 1.90 12.20 1.21
1 CX 25 350/0.300 1.20 9.95 2.00 14.20 0.780
1 CX 35 490/0.300 1.40 11.10 2.20 15.70 0.554
1 CX 50 703/0.300 1.40 13.30 2.40 18.30 0.386
1 CX 70 988/0.300 1.60 15.15 2.60 20.60 0.272
1 CX 95 1349/0.300 1.60 17.55 2.80 23.40 0.206
1 CX 120 608/0.500 1.80 19.45 3.00 25.70 0.161
1 CX 150 760/0.500 2.00 21.30 3.20 27.90 0.129
1 CX 185 943/0.500 2.20 23.90 3.40 30.80 0.106
1 CX 240 1225/0.500 2.40 27.10 3.50 34.10 0.0801
1 CX 300 1498/0.500 2.60 29.60 3.60 36.80 0.0641
1 CX 400 2035/0.500 2.80 33.80 3.80 41.60 0.0486
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83

Sq. mm Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Core dia. In mm Sheath Thickness in mm (nom.) Cable dia. In mm (Nom.) Max. C.R in ohm/km Copper
2 CX 1 14/0.300 0.80 3.00 1.30 8.70 18.10
2 CX 1.5 22/0.300 0.80 3.25 1.50 9.60 12.10
2 CX 2.5 36/0.300 0.90 3.80 1.70 11.10 7.41
2 CX 4 56/0.300 1.00 4.50 1.80 12.90 4.95
2 CX 6 84/0.300 1.00 5.25 2.00 14.70 3.30
2 CX 10 140/0.300 1.20 6.50 3.10 19.40 1.91
2 CX 16 224/0.300 1.20 8.00 3.30 22.70 1.21
2 CX 25 350/0.300 1.40 10.10 3.60 27.50 0.780
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83

Sq. mm Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Core dia. In mm Sheath Thickness in mm (nom.) Cable dia. In mm (Nom.) Max. C.R in ohm/km Copper
3 CX 1 14/0.300 0.80 3.00 1.40 9.45 18.10
3 CX 1.5 22/0.300 0.80 3.25 1.60 10.20 12.10
3 CX 2.5 36/0.300 0.90 3.80 1.80 11.90 7.41
3 CX 4 56/0.300 1.00 4.50 1.90 13.50 4.95
3 CX 6 84/0.300 1.00 5.25 2.10 15.60 3.30
3 CX 10 140/0.300 1.20 6.50 3.30 20.60 1.91
3 CX 16 224/0.300 1.20 8.00 3.50 24.20 1.21
3 CX 25 350/0.300 1.40 10.10 3.80 29.10 0.780
3 CX 35 490/0.300 1.40 11.30 4.10 32.10 0.554
3 CX 50 703/0.300 1.60 13.30 4.50 38.10 0.386
3 CX 70 988/0.300 1.60 15.30 4.80 42.30 0.272
3 CX 95 1349/0.300 1.80 18.00 5.30 49.10 0.206
3 CX 120 608/0.500 2.00 19.80 5.90 54.60 0.161
3 CX 150 760/0.500 2.20 22.00 6.00 59.50 0.129
3 CX 185 943/0.500 2.40 23.70 6.50 64.30 0.106
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83

Sq. mm Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Core dia. In mm Sheath Thickness in mm (nom.) Cable dia. In mm (Nom.) Max. C.R in ohm/km Copper
4 CX 1 14/0.300 0.80 3.00 1.50 10.7 18.10
4 CX 1.5 22/0.300 0.80 3.25 1.70 11.2 12.10
4 CX 2.5 36/0.300 0.90 3.80 1.90 13.0 7.41
4 CX 4 56/0.300 1.00 4.50 2.00 14.9 4.95
4 CX 6 84/0.300 1.00 5.25 2.30 17.5 3.30
4 CX 10 140/0.300 1.20 6.50 3.40 22.6 1.91
4 CX 16 224/0.300 1.20 8.00 3.60 27.1 1.21
4 CX 25 350/0.300 1.40 10.10 4.10 32.7 0.780
4 CX 35 490/0.300 1.40 11.30 4.40 36.2 0.554
4 CX 50 703/0.300 1.60 13.30 4.80 42.3 0.386
4 CX 70 988/0.300 1.60 15.30 5.20 48.2 0.272
4 CX 95 1349/0.300 1.80 18.00 5.90 55.6 0.206
4 CX 120 608/0.500 2.00 19.80 6.00 61.2 0.161
4 CX 150 760/0.500 2.20 22.00 6.50 66.0 0.129
4 CX 185 943/0.500 2.40 23.70 6.90 71.5 0.106
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83

Sq. mm Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Core dia. In mm Sheath Thickness in mm (nom.) Cable dia. In mm (Nom.) Max. C.R in ohm/km Copper
5 CX 1 14/0.300 0.80 3.00 1.60 11.50 18.10
5 CX 1.5 22/0.300 0.80 3.25 1.80 12.60 12.10
5 CX 2.5 36/0.300 0.90 3.80 2.00 14.50 7.41
5 CX 4 56/0.300 1.00 4.50 2.20 16.80 4.95
5 CX 6 84/0.300 1.00 5.25 2.50 19.40 3.30
5 CX 10 140/0.300 1.20 6.50 3.60 25.10 1.91
5 CX 16 224/0.300 1.20 8.00 3.90 29.70 1.21
5 CX 25 350/0.300 1.40 10.10 4.40 36.40 0.780
5 CX 35 490/0.300 1.40 11.30 4.60 40.00 0.554
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83
