H05G-K H07G-K

H05G-K 300/500 V H07G-K 450/750 V

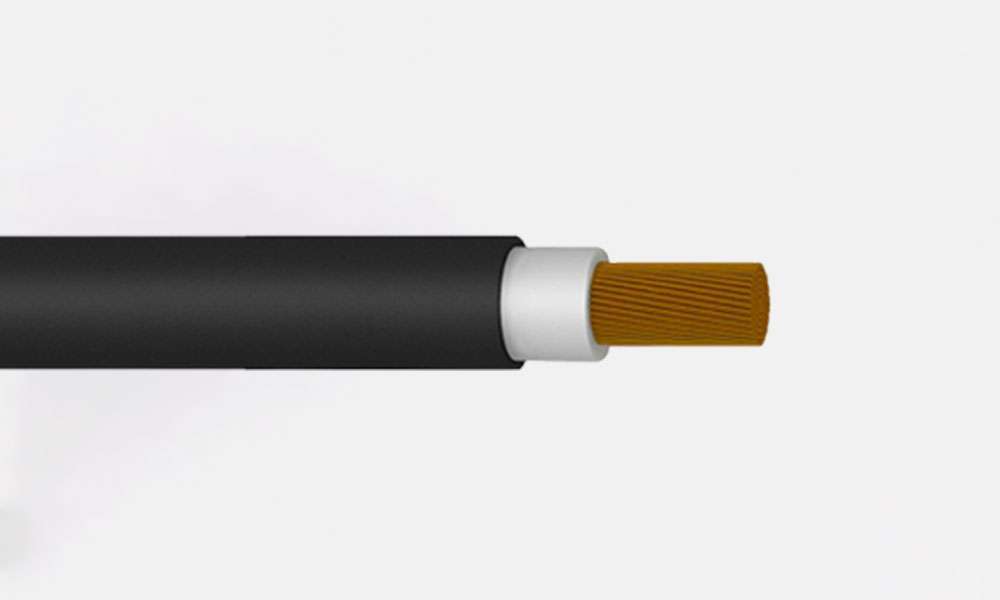

Cable Structure:

Conductor :- Fine Stranded Copper (Class 5 - Flexible Plain Copper) to VDE 0295 IEC 60228

Insulation :- Heat - resistant PVC core insulation

Colours :- Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation :- Flame retardant test as per IEC 60332-1

HO5V2-K, HO7V2-K:

- For internal wiring of appliances as well as installation in an electrical conduit pipe either on or underneath plaster

Standard length cable packing:

- Coils 100 and 200 m in Carton Boxes, Reels

Cable Features:

  • Special heat resistant rubber insulation
  • High Current Carrying Capacitys
  • Less heat energy radiation
  • High flexibility
  • Excellent resistant to moisture, abrasion, grace, oil
  • Excellent mechanical & electrical properties
  • Insulation is highly thermal stable
  • Harmonized acc. to European standards
  • Tested by SGS, EIL, RITES, NPC, INTERTEK

Operating Temp : -30°C to +90°C

Nominal Voltage : HO5V2-K : 300/500 V
HO7V2-K : 450/750 V

Test Voltage : HO5V2-K : 2000V
HO7V2-K : 2500V

Insulation resistance : Min. 20 MΩ x km<

Min. bending radius : 4 x Cable Diameter

Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
0.5 16/0.200 0.60 2.10 39.00
0.75 24/0.200 0.60 2.20 26.00
1 32/0.200 0.60 2.70 19.50
Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
1.5 30/0.250 0.70 3.25 13.30
2.5 50/0.250 0.80 3.80 7.98
4 56/0.300 0.80 4.50 4.95
6 84/0.300 0.80 5.25 3.30
10 140/0.300 1.00 6.50 1.91
16 224/0.300 1.00 8.00 1.21
25 350/0.300 1.20 10.10 0.780
35 490/0.300 1.20 11.30 0.554
50 703/0.300 1.40 13.50 0.386
70 988/0.300 1.40 15.30 0.272
95 1349/0.300 1.60 18.00 0.206
120 608/0.500 1.60 19.80 0.161
150 760/0.500 1.80 22.30 0.129
185 943/0.500 2.00 23.90 0.106
240 1225/0.500 2.20 26.80 0.0801

* All are class 5 flexible conductor

* Insulation grade is EI1

  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83
