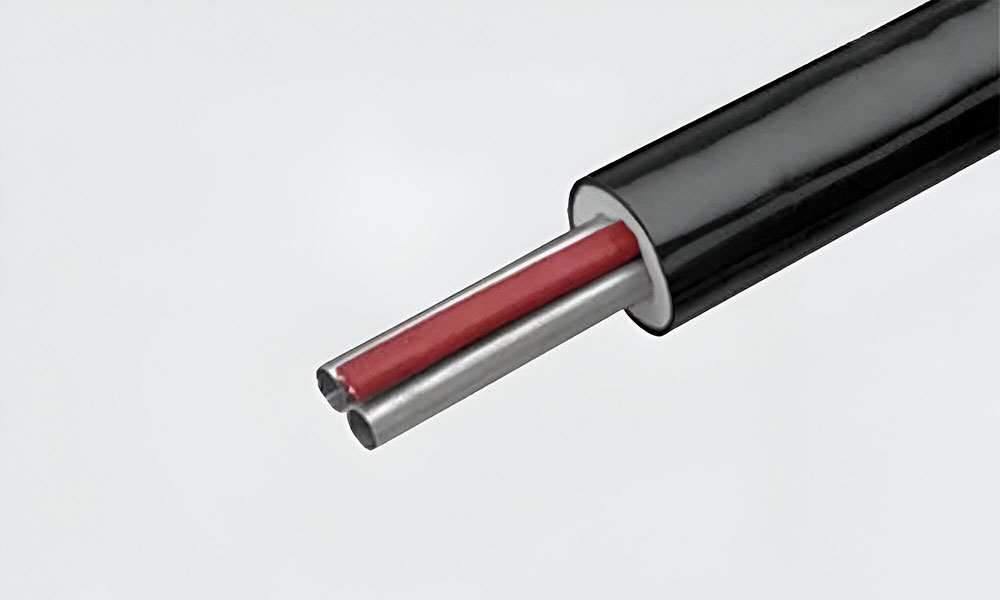

Thin Wall 3 & 4 Core Auto Cable

Thin Wall 3 Core Auto Cables

Cores manufactured to ISO 6722 : 2006 (Class B) 105°C.

Plain copper conductors PVC sheathed 70°C.

Cores manufactured to ISO 6722 : 2006 (Class B) 105°C.

Plain copper conductors PVC sheathed 70°C.

Conductor Specification (mm)	Conductor Cross Section mm²	Nominal Current Rating (Amps)	Maximum Overall Diameter of Cables (mm)	Sheath Colours	Core Colours
3 x 24/0.20	3 x 0.75	14.0	5.6	Black	Black, Red, Green
3 x 32/0.20	3 x 1.0	16.5	5.6
3 x 21/0.30	3 x 1.5	21.0	6.8
3 x 28/0.30	3 x 2.0	25.0	7.3

Conductor Specification (mm)	Conductor Cross Section mm²	Nominal Current Rating (Amps)	Maximum Overall Diameter of Cables (mm)	Sheath Colours	Core Colours
4 x 24/0.20	4 x 0.75	14.0	5.8	Black	Brown
4 x 32/0.20	4 x 1.0	16.5	5.8		Green Red
4 x 21/0.30	4 x 1.5	21.0	7.6		Red White
