Battery Cable

Battery Cable

Construction:

Conductor :- High conductivity, bare annealed copper flexible conductor, EC copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE 0281.

Insulation :- Double Insulated flexible Nitrile rubber (NBR) insulated.

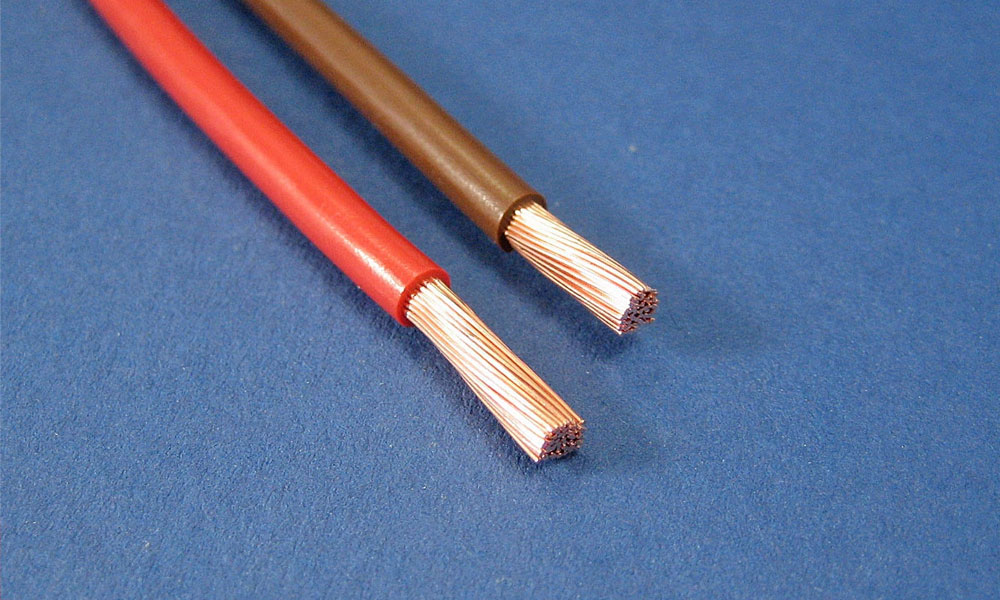

Color :- Red & Black Jacket
*Any other Color on specific request can also be supplied.

Flame propagation :- Flame retardant test as Per IEC 60332-1

Fixed Installation :- 40 c to max. + 90 C

Nominal Voltage :- 600 V

Test Voltage :- 2500 V

Mechanical Properties :- Tensile Strength = 10 N/mm Min. Elongation = 300 Min.

Min. Bending Radius :- 6 X Cable Diameter

Flame Propagation :- Flame Retardant Test As Per IEC 60332-1

✔ NBR/NBR & TPE/NBR :

- Designed for the secondary (high current) connection to automatic or hand - held metal arc battery electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor operated line and spot battery machines

✔ Standard length cable packing :

- Coils 50, 100, 200, 300 and 500 m. in wooden reels.

  • Ultra high performance flexible battery lead, double insulated.
  • Better flame retardant properties.
  • Excel lent flexibility to last longer in flex applications Based on CENELEC HD 22-6 31, VDE 0282, IEC 245-6, IS 473, BS 638-4.
  • Outstanding toughness & durability.
  • High resistance to cuts, tears & abrasion
  • Resistance to oil, solvents and chemicals
  • Excellent ozone and weather resistant.

Current Rating :- The maximum current ratings of flexible Battery cables are based on an ambient air temperature of 25 C and a o maximum conductor temperature of 90 C.

Cross Sectional Area
Sq.mm		 Copper Construction
Nos. X Dia. mm		 Inner Dia
mm		 Outer Dia Appx.
mm		 Max Conductor Resistance at 20°C
Ω/Km
16 511 X 0.20 8.00 10.70 1.210
25 798 X 0.20 9.50 12.10 0.780
35 1121 X 0.20 11.00 14.20 0.554
50 1596 X 0.20 12.30 16.30 0.386
70 2220 X 0.20 14.40 18.70 0.272
95 1349 X 0.30 16.60 20.80 0.206
  • All are flexible conductor.
  • Insulation material is NBR/TPE.
  • Sheath material is NBR.
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

    In view of continuous improvements in our design and process, specifications given here in are subject change without notice

Ambient temperature °C 20° 25° 30° 35° 40° 45° 50° 55° 60° 65°
Rating Factor 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.69 0.64 0.57
