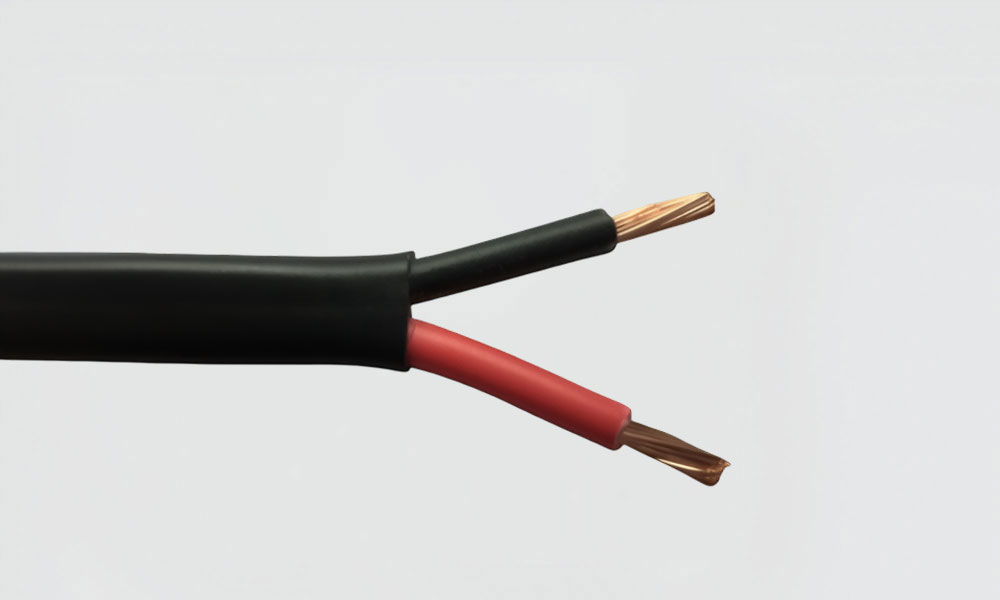

Thin Wall 2 Core Auto Cables

Thin Wall 2 Core Auto Cables

Thin Wall 2 Core Auto Cables (Flat Twins) Construction :

Manufactured in accordance with BS 6862 Part 1 1971, where applicable.

Plain copper conductors PVC insulated and sheathed 70°C.

Thin Wall 2 Core Auto Cables (Round Twins) Construction :

Cores manufactured to ISO 6722 : 2006 (Class B) 105°C.

Plain copper conductors PVC sheathed 70°C.

Specifications of Thin Wall Auto Cable (2 Core Flat Twins)

Conductor Specification
(mm)		 Conductor Cross Section
mm²		 Nominal Current Rating
(Amps)		 Maximum Overall Dimensions
of Cables (mm)		 Sheath Colours Core Colours
2 x 16/0.20 2 x 0.5 11.0 3.5 x 5.5 Black
2 x 24/0.20 2 x 0.75 14.0 3.5 x 5.5 Black
2 x 32/0.20 2 x 1.0 16.5 3.5 x 5.5 Black
2 x 21/0.30 2 x 1.5 21.0 3.8 x 6.6 Black Black Red
2 x 28/0.30 2 x 2.0 25.0 3.8 x 6.6 Black
2 x 35/0.30 2 x 2.5 29.0 4.4 x 7.6 Black
2 x 44/0.30 2 x 3.0 33.0 4.4 x 7.6 Black
2 x 65/0.30 2 x 4.5 42.0 5.7 x 9.5 Black

Specifications of Thin Wall Auto Cable (2 Core Round Twins)

Conductor Specification
(mm)		 Conductor Cross Section
mm²		 Nominal Current Rating
(Amps)		 Maximum Overall Dimensions
of Cables (mm)		 Sheath Colours Core Colours
2 x 16/0.20 2 x 0.5 11.0 5.0 Black
2 x 24/0.20 2 x 0.75 14.0 5.5 Black
2 x 32/0.20 2 x 1.0 16.5 5.7 Black
2 x 21/0.30 2 x 1.5 21.0 6.5 Black Black Red
2 x 28/0.30 2 x 2.0 25.0 6.7 Black
2 x 35/0.30 2 x 2.5 29.0 8.3 Black
