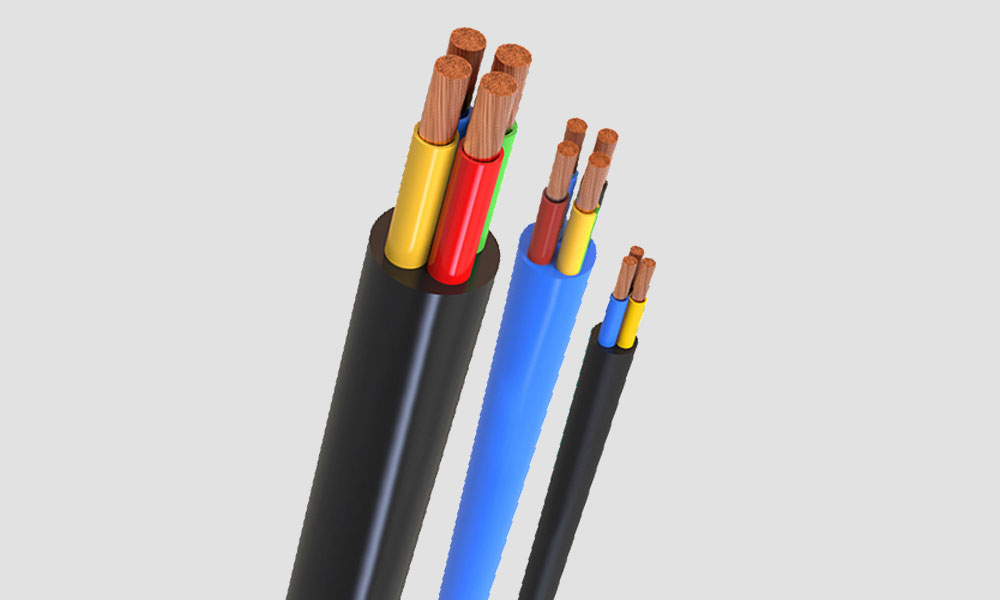

PVC Industrial Cables up to 1100V (Single & Multi-Core)

Construction:

Conductor :- Finely stranded bare flexible copper conductor

Insulation :- PVC

Sheath :- PVC

3core Colours :- Red, Yellow, Blue OR Brown, Blue, Black

4core Colours :- Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

Application:

Power wiring to appliance Sockets, Machineries, Industrial lighting. Penal boards. Batteries, D.C. Power Transfer etc

Special Features:

  • Special heat resistant insulation.
  • Higher current carrying capacity.
  • Fine copper wires.
  • Highly thermal stable insulation.
  • Excellent resistant to moisture, abrasion, grease, oil.
  • Longer Flex Life.
  • Excellent mechanical & electrical properties.
  • Tested by SGS, EIL, RITES, NPC, INTERTEK.
  • Operating Temperature -15°C to +70°C / +90°C / +105°C.

PVC Multi-Core Round Flexible Industrial Cable up to 1100V

Nominal cross section area of conductor
(Sq. mm) 		Number / Nominal dia of strands
(mm)		 Nominal Insulation Thickness
(mm)		 Nominal Sheath Thickness (mm) Max. Overall Diameter in mm Max. conductor resistance at 20°C
(ohms/km)		 Current Rating
(Amps)
2 Core 3 Core 2 Core 3 Core 4 Core
0.50 16/0.20 0.60 0.90 0.90 6.90 7.30 8.00 39.00 6
0.75 24/0.20 0.60 0.90 0.90 7.30 7.70 8.40 26.00 9
1.00 32/0.20 0.60 0.90 0.90 7.60 8.10 8.80 19.50 14
1.50 30/0.25 0.60 0.90 1.00 8.90 9.40 10.40 13.30 18
2.50 50/0.25 0.70 1.00 1.00 10.30 10.80 12.00 7.98 24
4.00 56/0.30 0.80 1.00 1.00 12.00 12.60 13.60 4.95 32
6.00 84/0.30 0.80 1.10 1.10 13.80 14.30 15.47 3.30 33
10.00 140/0.30 1.00 1.30 1.30 16.40 17.50 19.60 1.91 45
16.00 224/0.30 1.00 1.40 1.40 19.60 20.60 23.00 1.21 60
25.00 350/0.30 1.20 1.40 1.40 23.60 26.30 28.00 0.78 75
35.00 490/0.30 1.20 1.60 1.60 27.00 28.90 30.80 0.554 95
50.00 703/0.30 1.40 2.00 2.00 32.00 36.90 38.60 0.386 125

Single Core Cable Specifications

Nominal cross section area of conductor
(Sq. mm)		 Number / Nominal dia of strands
(mm)		 Nominal Insulation Thickness
(mm)		 Max. Overall Diameter
(mm)		 Max. Conductor Resistance at 20°C
(ohm/km)		 Current Rating
(AMPS)
0.50 16/0.20 0.60 2.60 39.0 6
0.75 24/0.20 0.60 2.80 26.0 9
1.00 32/0.20 0.60 3.00 19.5 14
1.50 30/0.25 0.60 3.40 13.3 18
2.50 50/0.25 0.70 4.10 7.98 24
4.00 56/0.30 0.80 4.80 4.95 32
6.00 84/0.30 0.80 5.30 3.30 42
10.00 140/0.30 1.00 7.00 1.91 55
16.00 224/0.30 1.00 8.10 1.21 75
25.00 350/0.30 1.20 10.20 0.78 100
35.00 490/0.30 1.40 11.70 0.554 125
50.00 703/0.30 1.40 13.90 0.386 165
70.00 988/0.30 1.40 16.00 0.272 240
95.00 1349/0.30 1.60 18.20 0.206 300
120.00 608/0.50 1.60 20.20 0.161 325
185.00 943/0.50 1.80 22.50 0.106 400
240.00 1223/0.50 2.00 24.90 0.0801 475
300.00 1528/0.50 2.20 28.40 0.0641 550
400.00 2035/0.50 2.40 31.00 0.0486 670
500.00 2553/0.50 2.60 41.00 0.0384 750
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

    In view of continuous improvements in our design and process, specifications given here in are subject change without notice.

    → All are flexible conductor

    → Insulation material is PVC

    → Sheath material is PVC
