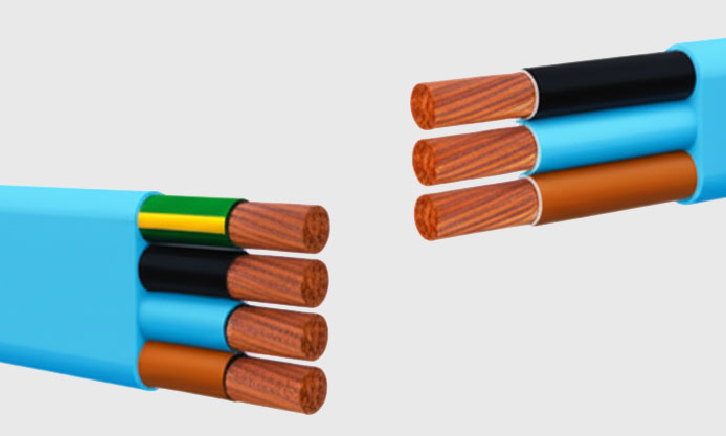

Rubber 3 & 4 Core Flate Cables EPDM

Rubber 3 & 4 Core Flate Cables EPDM

Construction:

Conductor :- Finely stranded bare flexible copper conductor.

Insulation :- EPR rubber

Sheath :- Black \ Blue heavy duty EPR.

3core Colours :- Red, Yellow, Blue OR Brown, Blue, Black

4core Colours :- Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

Application:

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Special Features:

  • Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
  • Designed for heavy duty use.
  • Excellent resistant to oils, acids, chemicals, ozone & solvents.
  • Excellent Weather Resistant.
  • Excellent Electrical Properties.
  • Temperature range -40°C to +90°C.

EPDM Rubber 3 Core Flat Cable For Submersible Pumps (1100 Volts)

Conductor Size (AWG) Nos and Dia.
of wire (Nos. x mm)		 Core Dia.
(mm)		 Nominal Sheath
Thickness (mm)		 Cable Overall
Dimension (mm)
14 41 x 0.254 3.85 1.15 14.60 x 6.40
12 65 x 0.254 4.50 1.15 16.80 x 7.40
10 105 x 0.254 5.30 1.15 18.70 x 7.90
8 168 x 0.254 6.50 1.40 23.70 x 9.90
6 226 x 0.254 8.00 1.40 28.00 x 11.40
4 420 x 0.254 10.10 2.00 35.50 x 14.70
2 665 x 0.254 11.30 2.00 35.50 x 16.20
1 817 x 0.254 13.60 2.20 45.50 x 18.30
1/0 1045 x 0.254 13.60 2.20 45.50 x 18.30
2/0 1330 x 0.254 15.60 2.20 51.00 x 20.00
3/0 1672 x 0.254 18.00 2.40 60.00 x 23.50
4/0 2116 x 0.254 19.80 2.65 65.00 x 25.00
250 MCM 2503 x 0.254 20.60 2.80 68.00 x 28.00

EPDM Rubber 4 Core Flat Cable For Submersible Pumps (1100 Volts)

Conductor Size (AWG) Nos and Dia.
of wire (Nos. x mm)		 Ground Conductor
Size (mm)		 Core Dia.
(mm)		 Nominal Sheath
Thickness (mm)		 Cable Overall
Dimension (mm)
14 41 x 0.254 14 3.85 1.15 18.00 x 6.50
12 65 x 0.254 12 4.50 1.15 21.00 x 7.60
10 105 x 0.254 10 5.30 1.15 24.30 x 7.90
8 168 x 0.254 10 6.50 1.40 29.70 x 9.90
6 266 x 0.254 8 8.00 2.00 36.00 x 11.80
4 420 x 0.254 8 10.10 2.00 45.10 x 14.70
2 665 x 0.254 6 11.30 2.20 50.10 x 16.20
1 817 x 0.254 6 13.60 2.20 58.10 x 19.00
1/0 1045 x 0.254 6 13.60 2.20 58.10 x 19.00
2/0 1330 x 0.254 4 15.60 2.20 66.50 x 21.50
3/0 1672 x 0.254 2 18.00 2.65 77.30 x 23.50
4/0 2116 x 0.254 2 19.80 3.85 87.00 x 27.80
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

    In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
