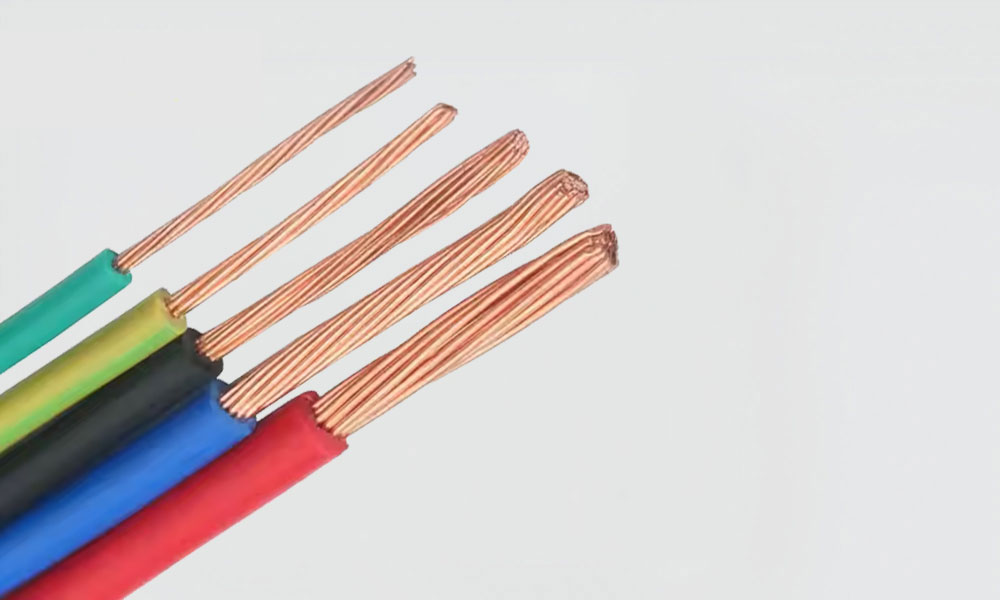

HO5V-R, HO7V-R

HO5V-R (450/750 V) HO7V-R (300/500 V)

Cable Structure:

Conductor :- Fine Stranded Copper (Class 2 - Flexible Plain Copper) to VDE 0295 IEC 60228

Insulation :- Heat - PVC insulation compound TI-1

Colours :- Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation :- Flame retardant test as Per IEC 60332-1

Application:

H05V-R, H07V-R

- Fixed Installation In Conduits And Under Plaster, For Appliance Wiring And Distribution Stations

Standard length cable packing:

- Coils 100 and 200 m in Carton Boxes, Reels

Features:

  • High Current Carrying Capacitys.
  • Excellent Resistant To Moisture, Abrasion, Grace, Oil.
  • Excellent mechanical & electrical properties.
  • harmonized acc. to European standards.
  • Steam and boiling water resistant.
  • Tested by SGS, EIL, RITES, NPC, INTE.

Operating Temp : -20°C to max.+80°C

Nominal Voltage : HO5V-U : 300/500 V | HO7V-U : 450/750 V

Test Voltage : HO5V-U : 2000V | HO7V-U : 2500V

Insulation resistance : Min. 10 MΩ x km

Min. bending radius : 4 x Cable Diameter

Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
0.5 7/0.30 0.60 2.20 36.00
0.75 7/0.37 0.60 2.30 24.50
1 7/0.37 0.60 2.70 18.10
Size in mm² Nos/ dia. (Nom.) Insulation Thickness in mm (nom.) Outer Dia in mm (Appx.) Max. C.R in ohm/km Copper
1.5 7/0.52 0.70 3.00 12.1
2.5 7/0.67 0.80 3.60 7.41
4 7/0.85 0.80 4.30 4.61
6 7/1.05 0.80 4.80 3.08
10 7/1.35 1.00 6.10 1.83
16 7/1.71 1.00 7.40 1.15
25 7/2.14 1.20 8.90 0.727
35 7/2.52 1.20 10.10 0.524
50 19/1.83 1.40 11.90 0.387
95 19/2.52 1.60 13.30 0.193
120 37/2.03 1.60 17.80 0.153
150 37/2.27 1.80 20.00 0.124
185 37/2.52 2.00 23.80 0.0991
240 61/2.24 2.20 26.50 0.0754
300 61/2.50 2.40 29.60 0.0601
400 61/2.88 2.60 34.00 0.0447
500 61/3.23 2.80 37.70 0.0366
630 91/2.97 2.80 42.60 0.0283
