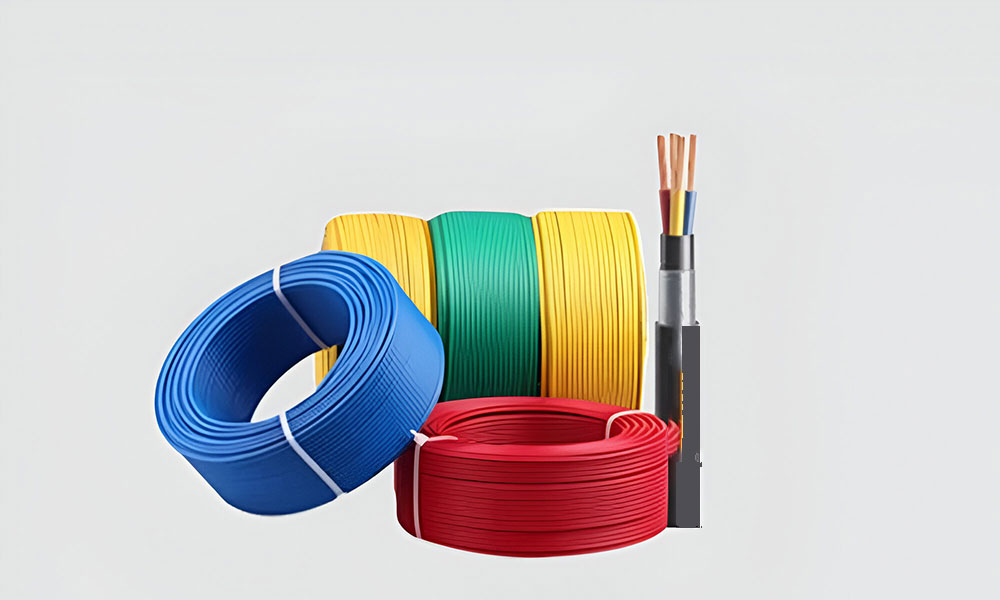

Building Wires up to 1100V

Building Wires up to 1100V

Construction:

Structure :- Generally conforms to IS 694, BS 6004, IEC 60227, DIN VDE 0281 -3, IS 8130 & IS 5831

Conductor :- EC grade flexible copper class 5 generally conforms IEC 60228, IS 8130

Insulation :- FR+HR/FRLS-H/ZHFR Insulation compound with a high insulation resistance value (-15°C to +70°C / +90°C/ +105°C)

Core Colours :- Red, Blue, Black, Brown, Grey, Orange, White, Green, Yellow (Any other Colour on specific request can also be supplied)

Application :- Fixed installation in conduits and under plaster for Power distribution to electrical appliances & Lighting in Houses, Commercial Complexes, Shopping Malls, Buildings, Industries, Hospitals, Apartments etc.

Application:

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Single Core Industrial Flexible Cable up to 1100V

Nominal cross section area of conductor
(Sq. mm)		 Number / Nominal dia of strands
(mm)		 Nominal Insulation Thickness
(mm)		 Approx Overall Diameter
(mm)		 Max. Conductor Resistance at 20°C
(ohm/km)		 Current Rating
Casing (AMPS)		 Current Rating
Concealed (AMPS)
1.00 14/0.30* 0.70 2.80 18.1 14 13
1.50 22/0.30* 0.70 3.00 12.1 18 16
2.50 36/0.30* 0.80 3.70 7.41 24 20
4.00 56/0.30** 0.80 4.20 4.95 32 26
6.00 84/0.30** 0.80 4.80 3.30 42 35

* Class 2 Stranded conductor
** Class 5 Flexible conductor

Test Specified Specified Values
Limited Oxygen Index Test IS 10810-58 > 29%
Limited Temperature Index Test IS 10810-65 > 250%
Limited Oxygen Index Test ASTM-D 2863 > 32%
Limited Temperature Index Test ASTM-D 2863 > 250%
Smoke Density (Light Absorption) ASTM-D 2843 < 50%
Acid Gas Generation IEC-60754-1 < 18%

Features of "CABILEX" Flexible Cables (FR/ FRLS/ ZHFR)

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

FRLF PVC Insulated Cable FRLS PVC Insulated Cable ZHFR Cable
High flame retardant properties Better Flame retardant property Zero Halogen acid gas evolution
Excellent resistant to moisture, abrasion, grease, oil Less Halogen acid gas evolution Non corrosive and non toxic insulation
Longer Flex Life Resistant to tarnishing of copper High temperature resistant insulation
Excellent mechanical & electrical properties Excellent resistant to moisture, abrasion, grease, oil Resistance to tarnishing of copper
Tested by SGS, EIL, RITES, NPC, INTERTEK Excellent mechanical & electrical properties
Steam and boiling water resistant
  1. Note says:

    The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

    In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
