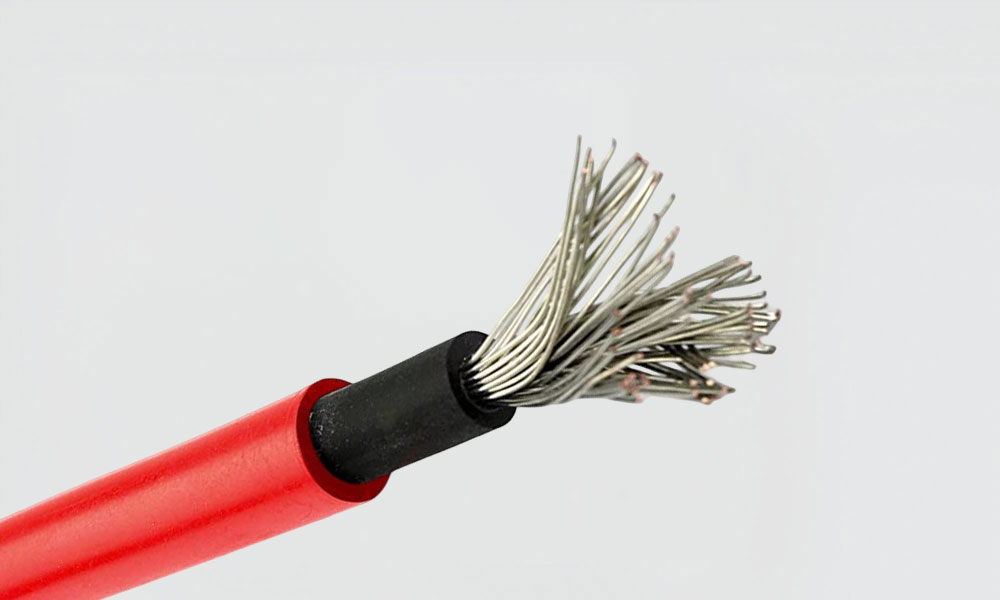

SOLAR CABLES

Information:

Type : PV Solar cables

Conductor : Electrolytic tinned copper of class 5 as per (IEC 60228)

Insulation : XLPO to operate at max. temp. of 120°C similar to (EI6/EI8)IEC 60502-1

Sheath : XLPO / cross linked EVA solidly connected with insulation (visible layers)

Marking : PV Solar cables size:xxxx spec.TUV 2Pfg 1169/08.2007 Mth/year.

Size in mm²	Nom. Sheath. Thickness in mm	Nom. Sheath. Thickness in mm	Appx. Overall Dia in mm	Tinned Copper D.C Conductor Resistance ohm./km	Current Carrying capacity at 60°C in Air (Amps.)	Permissible Short Circuit Current (Isc) 5 sec. (kA)
1.5	0.50	0.50	4.10	13.700	30	0.19
2.5	0.50	0.50	4.50	8.210	41	0.32
4	0.50	0.50	5.20	5.090	55	0.5
6	0.50	0.50	5.70	3.390	70	0.76
10	0.50	0.50	6.90	1.950	98	1.26
16	0.50	0.50	8.00	1.240	132	2
25	0.90	1.00	11.00	0.795	176	3.15
35	0.90	1.10	12.30	0.565	218	4.41
50	0.90	1.20	14.50	0.393	276	6.3
70	1.00	1.30	16.70	0.277	347	8.82
95	1.10	1.50	19.10	0.210	416	12
120	1.20	1.60	21.20	0.164	488	15.1
150	1.40	1.70	24.00	0.132	566	18.9
185	1.60	1.90	26.80	0.108	644	23.3
240	1.70	2.10	29.90	0.0817	775	30.4
