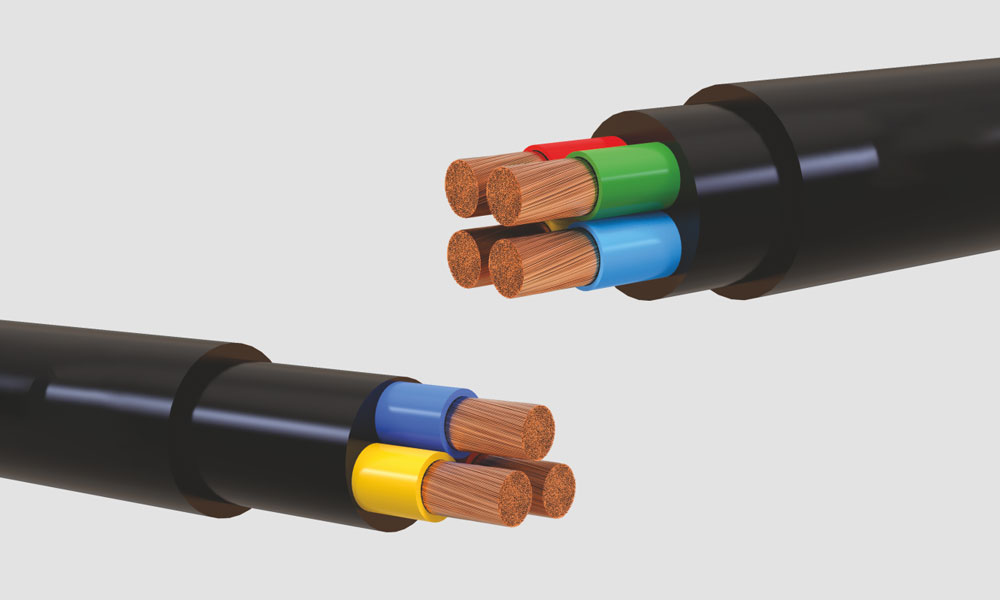

PVC 3 & 4 Core Double Sheathed Round Cables

Construction:

Conductor :- Finely stranded bare flexible copper conductor.

Insulation :- PVC

Sheath :- PVC

3core Colours :- Red, Yellow, Blue OR Brown, Blue, Black

4core Colours :- Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

For Equipment used in the following applications.

Excellent resistant to moisture, abrasion, greace, oil.
Excellent mechanical & electrical properties.
Generally Conforming to : CENELEC HD 21, IEC 60227, BS 6500, DIN VDE 0281, IS 694.
Temperature range -15°C to +70°C

Conductor		PVC Insulation		PVC Sheath		Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx.Overall. dimension	Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Sq. mm.	Nos./mm	mm	mm	mm	mm
1.50	22/0.30	0.80	3.25	1.15	10.00	12.10	14
2.50	36/0.30	0.90	3.80	1.15	11.00	7.41	18
4.00	56/0.30	1.00	4.50	1.15	13.00	4.95	26
6.00	84/0.30	1.00	5.25	1.15	14.60	3.30	31
10.00	140/0.30	1.00	6.50	1.40	18.00	1.91	42
16.00	224/0.30	1.00	8.00	1.40	21.20	1.21	57
25.00	350/0.30	1.20	10.10	2.00	26.50	0.780	72
35.00	490/0.30	1.20	11.30	2.00	29.50	0.554	90
50.00	703/0.30	1.40	13.50	2.20	34.80	0.386	115
70.00	988/0.30	1.40	15.30	2.20	39.30	0.272	143
95.00	1349/0.30	1.60	18.00	2.40	45.70	0.206	165

Conductor		PVC Insulation		PVC Sheath		Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx.Overall. dimension	Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Sq. mm.	Nos./mm	mm	mm	mm	mm
1.50	22/0.30	0.80	3.25	1.15	10.80	12.10	14
2.50	36/0.30	0.90	3.80	1.15	12.50	7.41	18
4.00	56/0.30	1.00	4.50	1.15	14.10	4.95	26
6.00	84/0.30	1.00	5.25	1.15	16.00	3.30	31
10.00	140/0.30	1.00	6.50	1.40	20.35	1.91	42
16.00	224/0.30	1.00	8.00	1.40	23.40	1.21	57
25.00	350/0.30	1.20	10.10	2.00	29.20	0.780	72
35.00	490/0.30	1.20	11.30	2.00	32.40	0.554	90
50.00	703/0.30	1.40	13.50	2.20	38.25	0.386	115
70.00	988/0.30	1.40	15.30	2.20	43.30	0.272	143
95.00	1349/0.30	1.60	18.00	2.40	50.40	0.206	165

Note says:

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
